505-530W High Efficiency TOPCon Solar Panel

Description

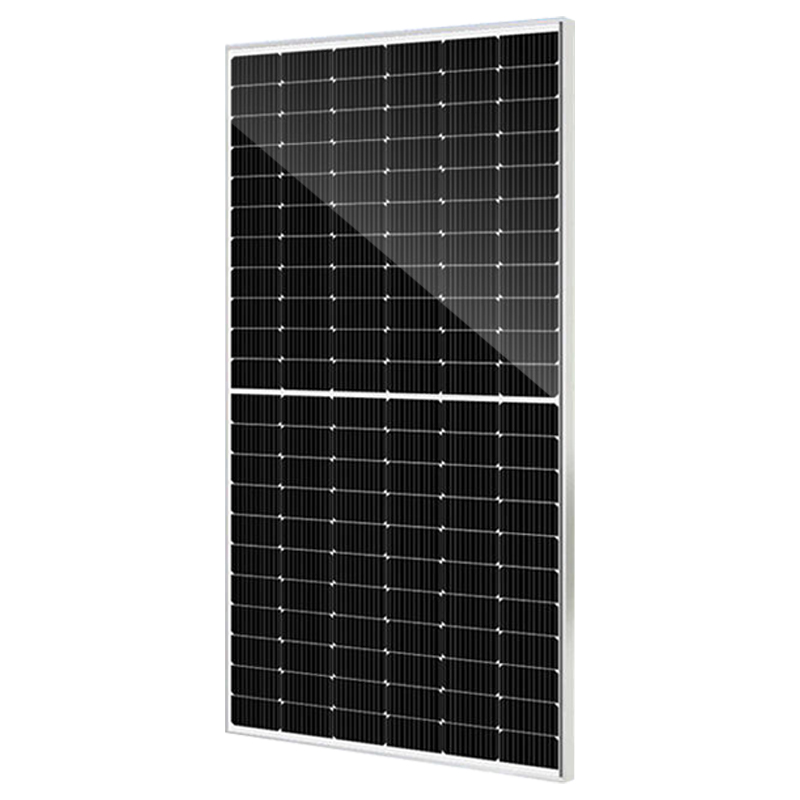

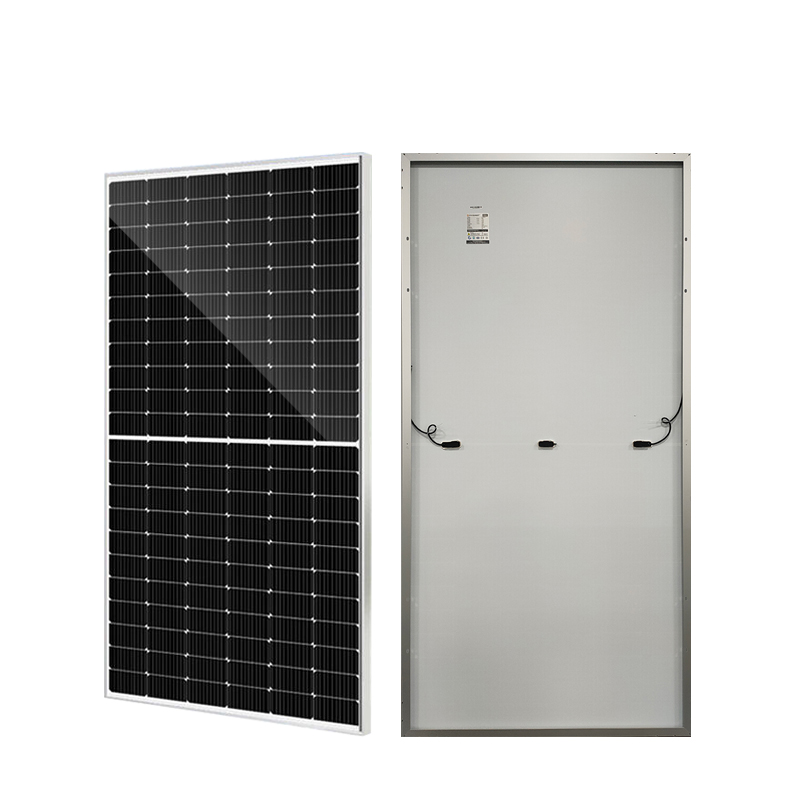

Module Pictures

Electrical Parameters at STC

Module Type	JMD505N-132M	JMD510N-132M	JMD515N-132M	JMD520N-132M	JMD525N-132M	JMD530N-132M
Maximum Power Pmax/W	505	510	515	520	525	530
Module Efficiency（%）	21.48%	21.67%	21.86%	22.06%	22.25%	22.45%
Open Circuit Voltage（Voc/V）	46.25	46.4	46.55	46.7	46.85	47
Short Circuit Current（Isc/A）	13.95	14.03	14.11	14.19	14.26	14.34
Voltage at Max. Power（Pmp/V）	38.38	38.53	38.71	38.86	39.01	39.18
Current at Max. Mower（Imp/A）	13.16	13.24	13.31	13.39	13.46	13.53
Power Tolerance	Pmax±3%
Temperature Coefficient of Isc	-0.25%/℃
Temperature Coefficient of Voc	0.045%/℃
Temperature Coefficient of Pmax	-0.29%/℃
STC：Irradiance 1000W/㎡ Cell Temperature 25℃ AM1.5

Electrical Parameters at NOCT

Module Type	JMD505N-132M	JMD510N-132M	JMD515N-132M	JMD520N-132M	JMD525N-132M	JMD530N-132M
Maximum Power（Pmax/W）	379	383	387	391	394	398
Open Circuit Voltage（Voc/V）	43.95	44.11	44.27	44.41	44.59	44.75
Short Circuit Current（Isc/A）	11.23	11.30	11.36	11.45	11.50	11.56
Voltage at Max. Power（Pmp/V）	36.05	36.22	36.40	36.57	36.73	36.90
Current at Max. Power（Imp/A）	10.53	10.60	10.64	10.71	10.76	10.81
NOCT：Irradiance 800W/㎡ Ambient Temperature 20℃ Wind at 1m/S AM1.5

Product Size

Overall dimensions (L×W×H)	Power range	Weight
2094mm×1134mm×30mm	505-530W	24.8kg±3%

Mechanical Diagrams

Characteristics

Operating Parameters

Mechanical Parameters

Cell	N type mono
Solar Cells	132pcs（6*22）
Dimension	2094×1134×30mm
Weight	24.8kg±3%
Structure	3.2 glass+POE /White film+back
Cable Cross Section Size	4mm2(IEC)
Junction Box	IP68、3*bypass diode
Cable Length ( Including Connector)	4.0mm²，(+)280mm/(-)280mm(custom)
Connector	MC4/Compatible with MC4
